39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9
| Número da peça | 39Q6-42100 39Q6-42100 31Q6-40011 | Nome da peça | Revestimento de redução de viagem |
|---|---|---|---|
| Candidatar-se | RD210-7 RD210-7V RD220-7 RD220LC9 | Tamanho da caixa de madeira | 52*52*57 |
| Peso | 257 kg | Doença | Novo |
| Quantidade mínima | 1 | Aplicativo | Comando Final da Escavadeira |
39Q6-42100 39Q6-42100 31Q6-40011 TRAVEL REDUCTION GEAR HX220L R210LC7A R210LC9 R210LC9BC R210LC9BH R210NLC9 R215LC7 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD210-7 RD210-7V RD220-7 RD220LC9

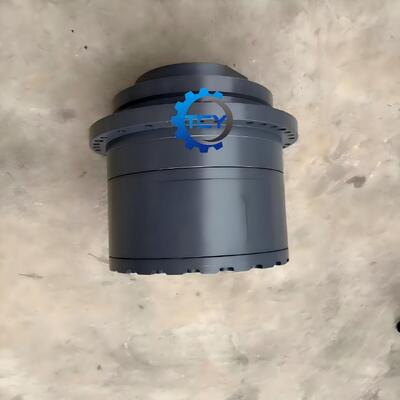

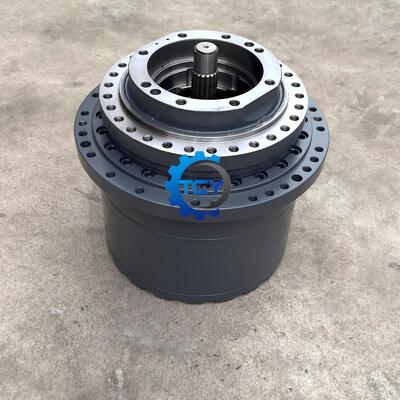

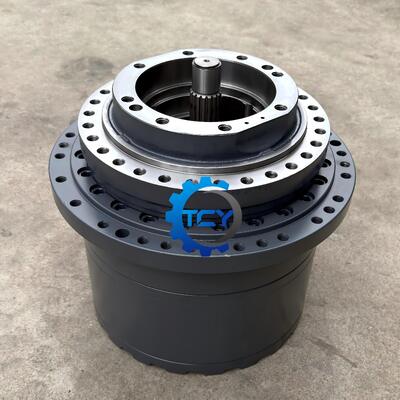

Brand-new aftermarket travel reduction gearbox for excavators; manufactured as a 1:1 replica with standard dimensions, wear-resistant gears, and low-noise operation.
![]()
| Pos. | Part No | Qty | Parts name | |
| *. | 39K6-40100 | [1] | TRAVEL MOTOR ASSY | |
| *. | 39K6-40101 | [1] | TRAVEL MOTOR ASSY | |
| *. | 38K6-40100 | [1] | TRAVEL MOTOR ASSY | |
| *. | 38K6-40101 | [1] | TRAVEL MOTOR ASSY | |
| *-2. | 39Q6-42100 | [1] | TRAVEL REDUCTION GEAR | |
| *-2. | 39Q6-42101 | [1] | TRAVEL REDUCTION GEAR | |
| 1 | 39Q6-42110 | [1] | GEAR-RING | |
| 2 | 39Q6-42120 | [2] | BEARING-ANG.BALL | |
| 3 | 39Q6-42130 | [2] | SEAL ASSY-FLOATING | |
| 4 | 39Q6-42140 | [1] | RING-NUT | |
| 5 | 39Q6-42150 | [1] | PLATE-LOCK | |
| 6 | S017-120166 | [4] | BOLT-HEX | |
| 7 | 39Q6-42160 | [1] | HOUSING | |
| 8 | S129-070206 | [20] | BOLT-SOCKET,UNIFIED | |
| 9 | 39Q6-42170 | [1] | COUPLING | |
| NK10. | 39Q6-42190 | [1] | CARRIER 2 | |
| NK11. | 39Q6-42200 | [4] | GEAR-PLANATARY 2 | |
| NK12. | 39Q6-42210 | [4] | BEARING-NEEDLE 2 | |
| NK13. | 39Q6-42220 | [8] | WASHER-THRUST 2 | |
| NK14. | 39Q6-42230 | [4] | PIN-CARRIER 2 | |
| NK15. | S472-800164 | [4] | PIN-SPRING | |
| NK16. | 39Q6-42350 | [4] | PIN-SOLID 2 | |
| 17 | 39Q6-42240 | [1] | GEAR-SUN 2 | |
| NK18. | 39Q6-42260 | [1] | CARRIER 1 | |
| NK19. | 39Q6-42270 | [3] | GEAR-PLANETARY 1 | |
| NK20. | 39Q6-42280 | [3] | BEARING-NEEDLE 1 | |
| NK21. | 39Q6-42290 | [6] | WASHER-THRUST 1 | |
| NK22. | 39Q6-42300 | [3] | PIN-CARRIER 1 | |
| NK23. | S472-600364 | [3] | PIN-SPRING | |
| 24 | 39Q6-42310 | [1] | GEAR-SUN 1 | |
| 27 | S109-16110D | [24] | BOLT SOCKET | |
| 28 | P220-110205 | [3] | PLUG-HEX | |
| 29 | S602-035001 | [1] | RING-RETAINING | |
| 30 | 39Q6-42341 | [1] | NAME PLATE | |
| 30 | 39Q6-42342 | [1] | NAME PLATE | |
| 31 | 39Q6-41800 | [2] | RIVET | |
| 32 | S631-024001 | [3] | O-RING | |
| *-1. | 38K6-41100 | [1] | TRAVEL MOTOR UNIT | |
| K. | 39Q6-42250 | [1] | CARRIER ASSY KIT 1 | |
| K. | 39Q6-42180 | [1] | CARRIER ASSY KIT 2 | |
| *-1. | 39K6-41100 | [1] | TRAVEL MOTOR UNIT | |
| *-1. | 38K6-41100 | [1] | TRAVEL MOTOR UNIT | |
| K. | 39Q6-42250 | [1] | CARRIER ASSY KIT 1 | |
| K. | 39Q6-42180 | [1] | CARRIER ASSY KIT 2 |
![]()
![]()
![]()
![]()
